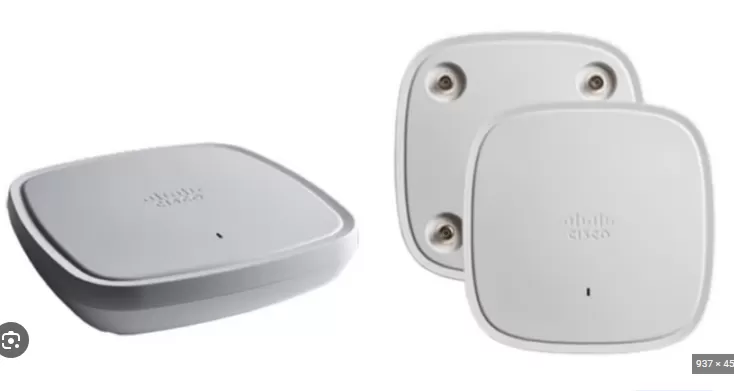

Bộ phát Wifi Cisco Catalyst C9120AXI-S Access Point
Indoor environments, with internal antennas
Bộ phát Wifi Cisco Catalyst C9120AXI-S Access Point
| Item | Specification | ||||||||||
| Part numbers | Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas ● Bộ phát Wifi Cisco Catalyst C9120AXI-S Access Point: Cisco Catalyst 9120AX Series Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas ● C9120AXE-x: Cisco Catalyst 9120AX Series Cisco Catalyst 9120AXP Access Point: Indoor, professional installations ● C9120AXP-x: Cisco Catalyst 9120AX Series Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller ● C9120AXI-EWC-x: Cisco Catalyst 9120AX Series Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller ● C9120AXE-EWC-x: Cisco Catalyst 9120AX Series Cisco Catalyst 9120AXP Access Point: Indoor, professional installations, with embedded wireless controller ● C9120AXP-EWC-x: Cisco Catalyst 9120AX Series Regulatory domains: (x = regulatory domain) Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List. Cisco Wireless LAN Services | ||||||||||
| Software | ● Cisco Unified Wireless Network Software Release 8.9.x or later ● Cisco IOS XE Software Release 16.11 with AP Device Pack, or later | ||||||||||
| Supported wireless LAN controllers | ● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller | ||||||||||
| 802.11n version 2.0 (and related) capabilities | ● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support | ||||||||||
| 802.11ac | ● 4x4 downlink MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support | ||||||||||
| 802.11ax | ● 4x4 downlink MU-MIMO with four spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support | ||||||||||
| Integrated antenna | Flexible radio (either on 2.4 GHz or on 5 GHz) ● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5-GHz radio ● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth | ||||||||||
