Processor

• One Intel Xeon E-2400 series processor with up to 8 cores or
• One Intel Pentium G7400/G7400T processor with 2 cores

Memory

• 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
• Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e Adpt
• Software Controller: S160

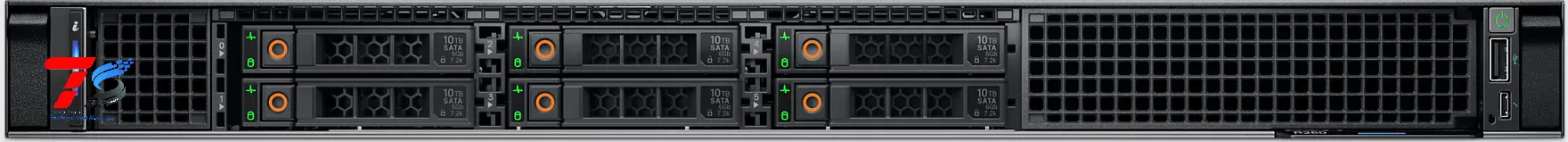

Drive Bays Front bays:

• Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB
• Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB

Power Supplies

• 450 W Platinum 100 — 240 VAC, non redundant
• 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant

Cooling Options Air cooling Fans • Up to six cabled fans

Dimensions

• Height – 42.8 mm (1.68 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 461.14 mm (18.15 inches) without bezel
• Depth – 496.8 mm (19.55 inches) with bezel
• Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel

Form Factor 1U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of TrustSystem Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC 2 x 1 GbE LOM

GPU Options N/A

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0

Rear Ports

• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.2 Gen1
• 1 x VGA
• 1 x Serial

Internal Ports : 1 x USB 3.2 Gen1

PCIe Up to two PCIe Gen4 slots on the Gen4 Riser

• Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
• Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
