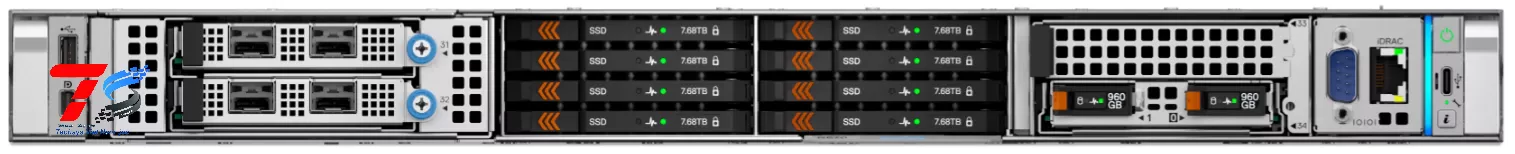

    Máy chủ Dell PowerEdge R470 2.5" x 8 - Xeon 6710E/32GB/2x480GB SSD/800W PSU/No OS/3Y

    302,600,000VNDVND
    (Giá đã có VAT)
    Chassis Configuration : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), Smart Flow, Rear IO, 1 CPU
    Motherboard : PowerEdge R470 Motherboard
    Processor : Intel® Xeon® 6 Efficient 6710E 2.4G, 64C/64T, 24GT/s, 96M Cache, Turbo, (205W) DDR5-5600
    Memory : 32GB RDIMM, 6400MT/s, Dual Rank
    Storage : 2 x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
    Internal Storage Controllers : PERC H965i Controller, Front, DC-MHS
    Network Adapters : NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter, No Crypto, OCP 3.0 NIC
    Embedded Systems Management : iDRAC10, Core 17G
    Power Supply : Single, Non-Redundant (1+0),Hot-Plug MHS Power Supply, 800W MM (100-240Vac)
    Operating System : No Operating System
    Warranty : 36 Month
    Sản phẩm hết hàng
    Thông tin sản phẩm
    Thông số kỹ thuật

    Processor : One Intel Xeon 6 processor with up to 144 cores per processor

    Memory

    • 16 DDR5 DIMM slot, supports RDIMM 1TB max, speeds up to 6400 MT/s
    • Supports registered ECC DDR5 DIMMs only
    • Note: The installed processor may reduce the operating speed of the DIMM

    Storage controllers

    • Internal Controllers (RAID): PERC H965i DC-MHS
    • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, or USB

    Drive Bays Front bays:

    • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
    • Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB

    Power Supplies

    • 800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
    • 1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant

    Cooling Options Air cooling

    Fans : Up to 4 sets (dual fan module) hot swappable fans

    Dimensions

    • Height – 42.8 mm (1.69 inches)
    • Width – 482 mm (19.0 inches)
    • Depth – 816.92 mm (32.16 inches) with bezel
    • Depth – 815.14 mm (32.09 inches) without bezel
    • Depth (Front I/O Configuration) — 829.44 mm (32.09 inches) without bezel
    • Note: Front I/O configuration will not have a bezel.

    Form Factor 1U rack server

    Embedded Management

    • iDRAC10
    • iDRAC Direct
    • iDRAC RESTfull API with redfish

    Security

    • Cryptographically signed firmware
    • Data at Rest Encryption (SEDs with local or external key mgmt)
    • Secure Boot
    • Secured Component Verification (Hardware integrity check)
    • Secure Erase
    • Silicon Root of Trust
    • System Lockdown (requires iDRAC10 Enterprise or Datacenter)
    • TPM 2.0 FIPS, CC-TCG certified

    Embedded NIC N/A

    GPU Options Up to 2 x 75 W SW

    Ports Front Ports

    • 1 x USB 2.0 Type - C port
    • 1 x USB 2.0 Type A port (optional)
    • 1 x Mini-DisplayPort (optional)
    • 1 x DB9 Serial (with front I/O configuration)
    • 1 x Dedicated BMC Ethernet port (with front I/O configuration)

    Rear Ports

    • 1 x Dedicated BMC Ethernet port
    • 2 x USB 3.1 Type A ports
    • 1 x VGA

    Internal Ports

    • 1 x USB 3.1 Type A port

    PCIe

    • Up to 2 x16 Gen5 PCIe slots
    • Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
    • Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser

    Operating System and Hypervisors

    • Canonical Ubuntu Server LTS
    • Red Hat Enterprise Linux
    • SUSE Linux Enterprise Server
