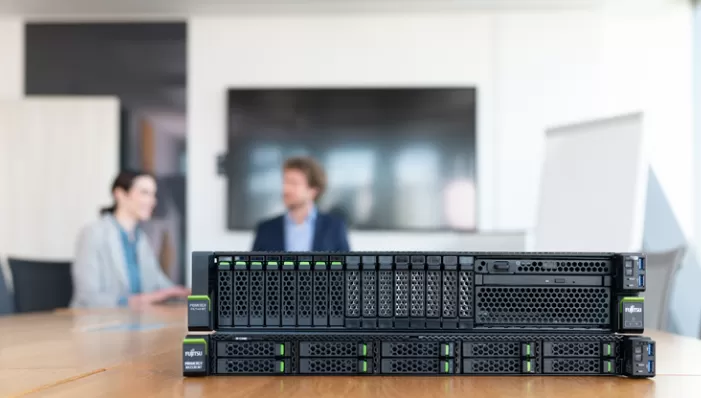

Máy chủ Fujitsu PRIMERGY RX4770 M7
Chassis : Rack 3U
Product Type : Quad Socket Rack Server
Processor : Boost performance with 4th Generation Intel® Xeon® Scalable Processors (up to 60 cores / CPU)
Memory : Address large data sets with up to 48 DIMMs with DDR5 DIMM with up to 4800 MT/s
Storage drive bays : Scale capacity with 24x 2.5” storage drives, 11x PCIe 5.0 slots and support for 2x GPU cards
Power supply configuration : 3 hot-plug power supplies (standard)
Bảo hành : 36 Tháng chính hãng, Co CQ đầy đủ
Máy chủ Fujitsu PRIMERGY RX4770 M7
| Chipset | Intel® C741 |
| Mainboard type | D3984 |
| Product Type | Quad Socket Rack Server |
| Processor | Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor 2 or 4 |
| Memory | 16 GB - 16 TB, DIMM (DDR5) |
| Memory slots | 64 (16 DIMMs per CPU, 8 channels with 2 slots per channel) |
| Memory protection | ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 4.0 x16 | 4 x Full height Refer to Slot Notes. |
| Optional accessible drives | 1 x 5.25/9.5mm for DVD-RW/Blu-ray All possible options described in relevant system configurator. |
| Storage drive bays | 2.5-inch hot-plug SAS/SATA/PCIe 2 x M.2 slots 8 x 2.5-inch hot-plug SAS/SATA/PCIe 24 x 2.5-inch hot-plug SAS/SATA/PCIe Optional expandable up to 16 storage drives |
| LAN Controller | Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 5 x USB 3.1 Gen1(USB3.0) (2x front, 2x rear, 1x internal) |
| Graphics | 1 x VGA (1 x rear, 1 x front(Optional)) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module; TCG compliant (option) |
| Power supply configuration | 3 hot-plug power supplies (standard) |
| Active power (max. configuration) | 3,700 W |
| Weight | max. 40 kg |
| Rack (W x D x H) | 482.6 mm (Bezel) / 435 mm (Body) x 800 x 129.4 mm |
| Mounting Depth Rack | 830.6 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) Essential Edition Advanced Edition |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Warranty period | 3 years |
| Warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) | Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
